Invisible Grilles

Our Invisible Grille product range meets the needs of design, function, and safety. Our Legate invisible grille products offer the protection that conventional grille provides without blocking your view

Invisible Grille 3 Grille Wire Types

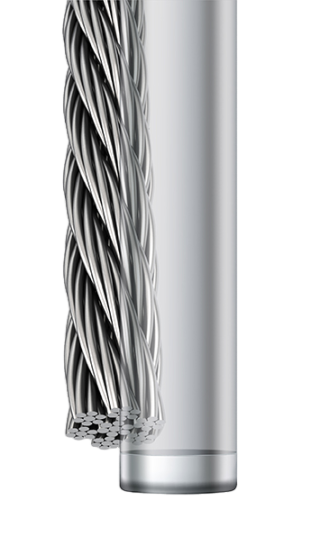

Premium A+

Nanophase (nylon) white transparent coating
The most popular type as it is more invisible from a distance from the inside view
Smooth surface

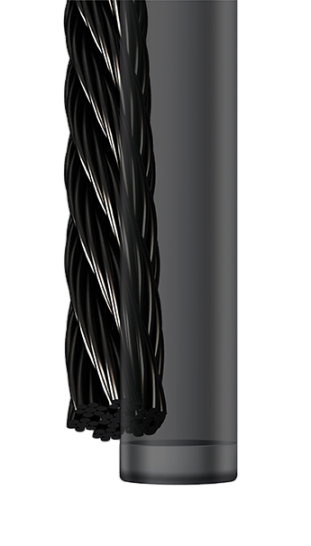

Supreme Black

Nanophase (nylon) black coating
Smooth surface

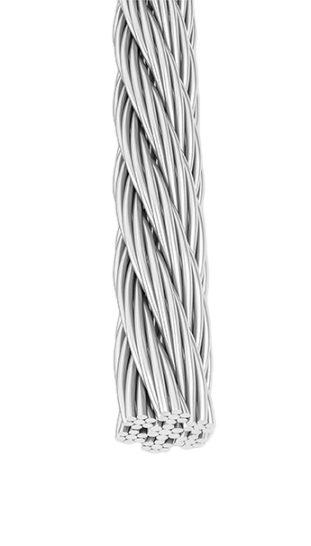

Diamond Grille

Recommended for areas that are exposed to too much sunlight as it does not have a physical coating.
The coating is nano-silica, which is integrated together with the wire, making the wire all-weather.
It is not recommended if the household has kids, as the wire surface is rough.

Invisible Grille 4 Grille Wire Gaps

for Pet Safety

1.5 Inch

Recommend a 1.5-inch gap if the household has pets, especially cats.

Kids 7 & below

2 Inch

It is recommended if the household has kids seven and below

Kids 7 -12

3 Inch

It is recommended if the household has kids 7-12 years old.

For Adults

4 Inch

Just for added safety for adults

Invisible Grille Dimensions :

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid
than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s
weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for
general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a
favorite for control cable and a variety of marine rigging applications,

Track Dimensions :

2 Track Thickness : 75mm

3 Track Thickness : 125mm

IVG track : 30 mm x30 mm

Square Track

Round Track

Invisible Grille Type Of Installation

Fixed Grille

Mainly for concrete ceilings or side walls aluminium curbs, aluminium cladding, and HDB windows and aluminum windows,
For windows, we must inform the client to choose a gap that can fit the hands in between to open and access the glass windows for cleaning.,
Only Includes the aluminium track

Fixed Frame

Mainly for balcony with false ceilings, aluminium curbs, aluminium cladding, and condo windows with window frames,
For windows, choose a gap that can fit the hands in between to open and access the glass windows for cleaning.,
Includes the aluminium track and the structure (frame)

Openable Invisible Grille

3 Different Options for Openable (Casement, Sliding, Bifold)

Casement

Includes the aluminium track, inner frame, and outer frame for the mechanism
Track thickness (side) is 32 mm
Track thickness (front including mechanism)
It opens inwards

Sliding

Includes the aluminium track, inner frame, and outer frame for the mechanism
Track thickness (side) is 40 + 40mm
Track thickness (front including mechanism)

Bifold

Includes the aluminium track, inner frame, and outer frame for the mechanism
Track thickness (side) is 32mm
Track thickness (front including mechanism)

Aluminum Grille

Select options

The Legate Traditional Aluminium Window Grille has the advantage of lightness that has a high mechanical strength too. It is powder-coated to make it rustproof. It is zero maintenance, safe and secured that will provide you and your family peace of mind. Whatever shape or window style you choose, Legate can provide just the right grille pattern.

Mozzie Grille

Select options

The Legate Mozzie Grille consists of a lightweight, powder-coated aluminium grille with a stainless steel net laid over it. It’s an effective and affordable way to keep mosquitoes out of your home and protect pets and small children from accidental falls.

Invisible Grille Reviews
